2C 16AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V

Product Categories
Guangdong Shineplus Connection Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2C 16AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V

  • 1
  • 2

Certification : RoHS Reach

Insulation : SR-PVC

Model Number : UL2464

Conductor : Tinned Copper Stranded

Supply Ability : 100km per day

Packing : Packed in Rolls or Reels

MOQ : 1000m

Delivery Time : 3-4 Weeks

Voltage : 300V

SP : 1201146

Payment Terms : T/T,L/C,Western Union

Application : Industrial,comsumer Electrics,etc

Price : To be negotiated

Temperature : 80℃

Place of Origin : China

Jacket : PVC

Brand Name : Shineplus

Name : Electric Cable

Packaging Details : Packed in rolls or reels

Contact Now

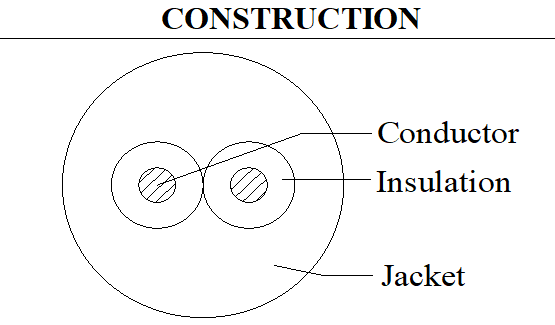

UL2464 2C×16AWG Tinned Copper Stranded Electric Cable with SR-PVC Insulation PVC Jacket 300V 80℃


ITEM 2C×16AWG(26/0.254T)
CONDUCTOR Material Tinned copper stranded
Size 26/0.254±0.008mm
O.D.(Ref) 1.50mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 2.20±0.10mm
CABLING O.D.(Ref) 4.40mm
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.69mm
O.D. 6.30±0.15mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):14.6Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±2℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1



2C 16AWG UL2464 Tinned Copper Stranded Industrial Flexible Cable SR-PVC Insulation PVC Jacket 300V


Product Tags:

UL2464 2C×16AWG tinned copper cable



SR-PVC insulated electric cable



300V 80℃ PVC jacket cable
